A-Si TFT-LCD Panel Industrial Lcd Monitor 5.7" 640*480 NEW LCD PANEL G057VN01 V0

Brand Name : AUO

Model Number : G057VN01 V0

Place of Origin : KOREA

MOQ : 1

Price : Pls contact email：sales1@megasourceel.com

Payment Terms : T/T, Western Union，PAYPAL,BANK TRANSFER

Supply Ability : 1000

Delivery Time : STOCK

Packaging Details : STANDARD PACKING

Panel Type : a-Si TFT-LCD , Panel

Panel Size : 5.7 inch

Resolution : 640(RGB)×480 , VGA

Display Mode : TN, Normally White, Transmissive

Active Area : 115.2×86.4 mm

Outline : 144×104.6 mm

Surface : Antiglare, Hard coating (3H)

Brightness : 400 cd/m² (Typ.)

Contrast Ratio : 800:1 (Typ.)

Display Colors : 262K (6-bit) , CIE1931 50%

Response Time : 15/10 (Typ.)(Tr/Td)

Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)

Lamp Type : 3 strings WLED ， Without Driver

Signal Interface : CMOS (1 ch, 6-bit) , 33 pins

Input Voltage : 3.3V (Typ.)(VDD)

Operating Temperature : -30 ~ 85 °C

Storage Tempera-40 ~ 80 °Cture : -30 ~ 85 °C

ROHS : Y

Contact Now

Model Number:G057VN01 V0

NEW LCD PANEL G057VN01 V0 a-Si TFT-LCD Panel 5.7" 640*480 for Auo

1,AUO G057VN01 V0 Mechanical Features

Panel Size :	5.7 inch
Dot Resolution :	640(RGB)×480 (VGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	141 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.060×0.180 mm (H×V)
Pixel Pitch :	0.180×0.180 mm (H×V)
Weight :	155/170g (Typ./Max.)
Surface :	Antiglare, Hard coating (3H)
Active Area :	115.2×86.4 mm (H×V)
Bezel Area :	118.2×89.4 mm (H×V)
Outline Dimension :	144×104.6 mm (H×V)
Outline Depth :	12.3 (Typ.) mm
Holes & Brackets :	Rear mounting holes (4-Φ2.6)
Landscape or Portrait :	Landscape type
Touch Panel :	Without

2,AUO G057VN01 V0 Optical Features

Display Mode :	TN, Normally White, Transmissive
Brightness :	400 cd/m² (Typ.)
Contrast Ratio :	800 : 1 (Typ.) (Transmissive)
Display Color :	262K (6-bit)
Color Gamut :	50% NTSC (CIE1931)
Response Time :	15/10 (Typ.)(Tr/Td)
Viewing Angle :	80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	12 o'clock
White color Chromaticity :	Wx:0.313; Wy:0.329
White Variation :	1.30 (Max.)(5 points)

3,AUO G057VN01 V0 Electronics Feature

Vertical Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Power Consumption :	1.96W

4,AUO G057VN01 V0 Backlight System

Lamp Position :	Edge light type (Top side)
Lamp Type :	WLED
Lamp Amount :	3 strings
Lamp Shape :	3 strings
Lamp Life Time :	50K(Typ.) (Hours)
Lamp Replaceable :	Replaceable
Lamp Voltage :	33.5/44.0V (Typ./Max.)
Lamp Current :	15/20mA (Typ./Max.)
Lamps Power Consumption :	1.5W (Typ.)
Interface Type :	Connector
Backlight Interface	Brand	Model	Pin Pitch	Pins	Amount	Configuration
	STM	P24021P6	1.0 mm	6 pins	1 pcs	BLE-6PINS-AAACCC
Lamp Driver Board :	No

5,AUO G057VN01 V0 Signal Interface

Signal Category :	TTL
Signal Class :	CMOS (1 ch, 6-bit)
Input Voltage for Panel :	3.3V (Typ.)(VDD)
Input Current for Panel :	140/155mA (Typ./Max.)(IDD)
Panel Power Consumption :	0.46/0.51W (Typ./Max.)
Voltage for Display Signals :	0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Type :	Connector
Signal Interface :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
	STARCONN	089H33-000100-G2-R	0.5 mm	33 pins	1 pcs	DRGB-33P1C6B-010A

6,AUO G057VN01 V0 Packing Form

Amount per Box :	60 pcs
Box Size :	520×340×250 mm (L×W×H)
Box Gross Weight :	12.65 Kgs

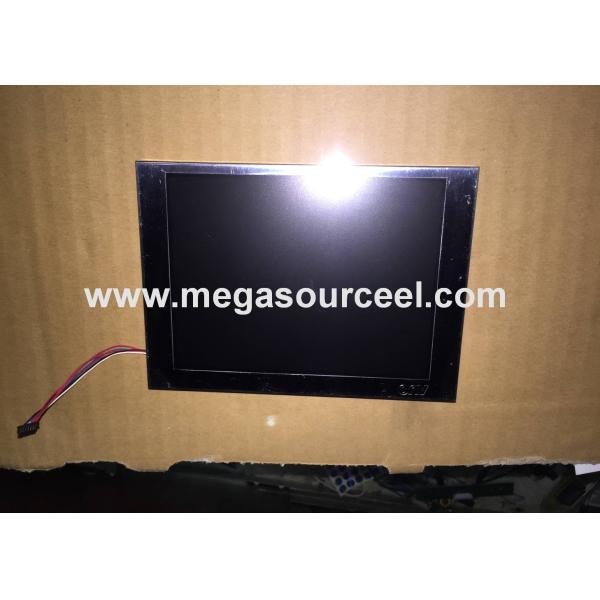

Details Picture for NEW LCD PANEL G057VN01 V0 a-Si TFT-LCD Panel 5.7" 640*480 for Auo

A-Si TFT-LCD Panel Industrial Lcd Monitor 5.7" 640*480 NEW LCD PANEL G057VN01 V0
